Project 1: Venturi's House

Project 2: Drawings

Painting : The Girl with Two Men
Narrative : Empowering character pierced physical attention, Neglection draws mental curiosity

Painting Studies through photoshop

Physical geometric shapes studies

Floor Plan


Section


Front Elevation


Underground Level Studies

Circulation Studies


Windows opening studies



Wall and Space relationship


Stairs in axonometric

Solid and translucent

Project 2: Model

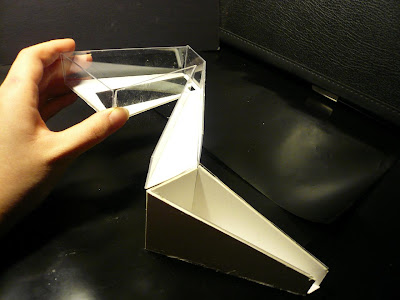

Zig zag ramp running throughout as a transition element and also creating a space
Visually piercing at the first glance

leading to a staircase to a basement level

Main feature of stairs : Deep and dark down

Model concept


Splited into 2 parts, as a ramp and a space, each at different levels


Doorway from the stairs to the basement level


Floor plan of the basement level
Mazed like plan associating with pocket spaces, windows and wall relationship

Project 3 : Drawings

Site Plan

Site plan studies
Left: Density of traffic
Right: Walking Pedestrians in relationship to the site

Site Circulation Studies
Left: Density of Pedestrians and Gathered areas
Right: Alteration of site purpose to interrupt the circulation flow and create anew gathering spot

Roof Plan

Dark and Light Moments viewing from floor plan

Section


Front Elevation


Shadowing resulting from skylights


Major Architecture Elements aiding circulation :
Staircase and Ramp

Utility of space in staircase

Project 3 : Model

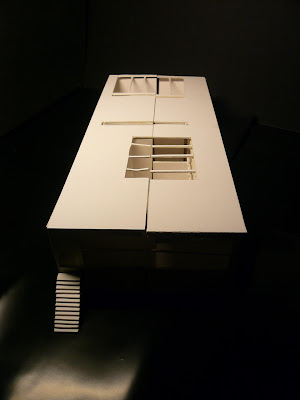

Exterior : Perspective on Facade

Split Section


Roof Plan Views

Stairs leading up to a small entrance

Entering a confined and directed space
Doubts and Insecurity



Entering into a wide open space with high ceilings
contrasting from the space before



Alternated by another confined space but giving a more sense of choice
as it incorporated with a wider space

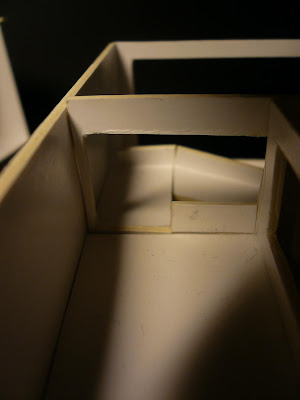

Cramped and dark pathway
Light ahead giving the observer an anticipation of a wide bright space ahead



Door Opening below the stairs leading to the artist's private dwelling
Private space closely associated with public yet forbidden and less revealing



A directed and narrative path element following throughout the journey in the art gallery
with few designed moments enriching the experience



Alteration of the thickness of wall, sandwiched a translucent element allowing skylight to fall into
the private space underneath the art gallery space



A path leading up to the exit
Pocket of spaces on the right revealing as the observer walks through



Exit to the ramp


The space nearest the facade with a ramp leading down to the open space on the ground
Giving the public a share to the art gallery

Above the open space, the space nearest to the facade is highly expose, event occurs in the space
as a performance contributing to the streets
